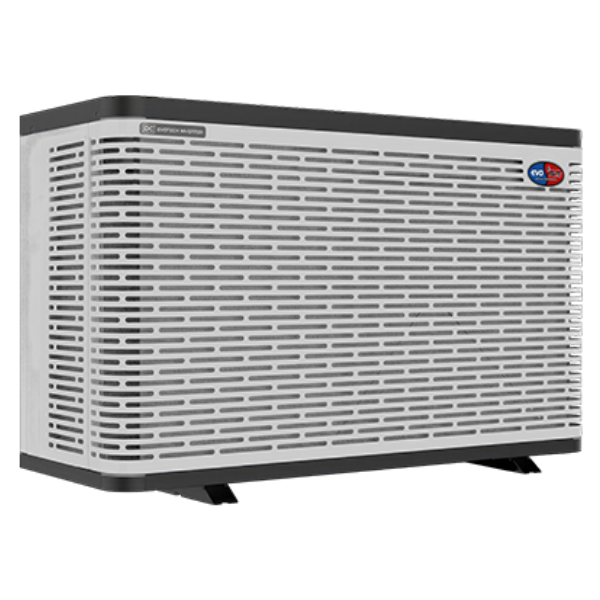

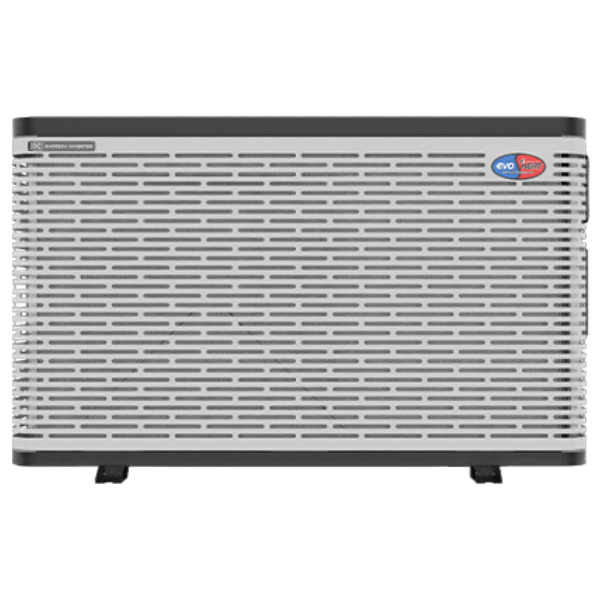

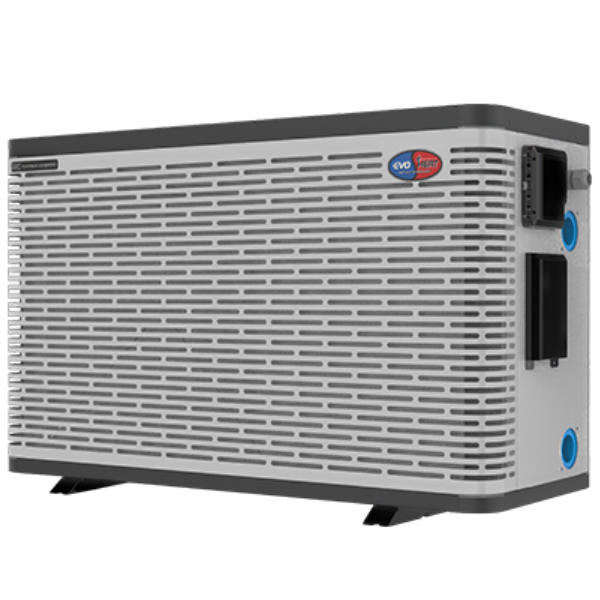

EvoHeat Edge i9 – 9kW Pool & Spa Heat Pump

Name: EvoHeat Edge i9 - 9kW Pool &amp; Spa Heat Pump
SKU: EDGE-I9
Availability: InStock

$4,495.00

In stock

EvoHeat Edge i9 – 9kW Pool & Spa Heat Pump

Introducing the cutting-edge Evo Edge-i inverter heat pump, a true game-changer in domestic pool and spa heating! Say goodbye to installation limitations and hello to convenience! With its innovative side air discharge and rear air intake, the Evo Edge-i heat pump can be conveniently installed almost anywhere. Ideal for wall mounting and tight installations, the Evo Edge-i boasts a cutting-edge space saving design.

Equipped with the latest stepless full DC inverter compressors, fans, and control systems, the Evo Edge-i heat pump delivers optimal year-round heating and cooling at the lowest possible operating costs. Upgrade your pool today and embrace the comfort, maximise your savings and start swimming more with the Evo Edge-i.

Features:

Extremely energy efficient, C.O.P. up to 12.19
Full stepless DC inverter technology
Heating, cooling & automatic modes
Built-in timers
Bluetooth and Wi-Fi control
Ultra quiet operation
Automatic defrost system
Powder-coated steel cabinet
R32 refrigerant
Side air discharge
Install nearly anywhere
Stable performance from -7°C

Warranty: 25 years on the titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.

Details

MODEL		EDGE-I 7	EDGE-I 9	EDGE-I 13	EDGE-I 17	EDGE-I 20
Heating Output (27°C air/26°C water)	kW	7.45	9.17	11.47	16.02	18.10
Heating Output (15°C air/26°C water)	kW	5.34	6.62	8.55	11.38	13.20
Heating Output (10°C air/26°C water)	kW	3.63	3.63	3.91	6.04	7.78
C.O.P at 27°C Air		11.24~6.07	11.24-5.73	12.19-5.69	12-5.43	11.53-6.11
Consumed Power at 27°C Air	kW	0.29-1.227	0.29-1.6	0.295-2.016	0.55-2.95	0.57-2.96
Power Supply		220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50
Max Running Current	A	7	9.5	10.3	14	14
Connection Type		10amp	10amp	15amp	Hardwired	Hardwired
Fan Quantity		1	1	1	1	1
Fan Speed	RPM	600-800	600-800	500-900	500-800	500-850
Noise at 1m	dB(A)	40-46.5	40-46.5	43-50	43-53	39.5-52.5
Noise at 1m (Silent Mode)	dB(A)	40	40	43	43	39.5
Refrigerant		R32	R32	R32	R32	R32
PVC Water Connection	mm	40	40	40	40	40
Water Flow Volume	L/min	66.67	66.67	76.67	115	128.33
Water Pressure Drop (Max)	kPa	3.2	3.2	4	7.5	8.8
Net Dimensions (LxWxH)	mm	1034/450/626	1034/450/626	1034/450/626	1040/490/768	1171/510/858
Net Weight	kg	67	67	67	87	98

Documentation

EvoHeat Edge Brochure

View

EvoHeat Edge Manual
