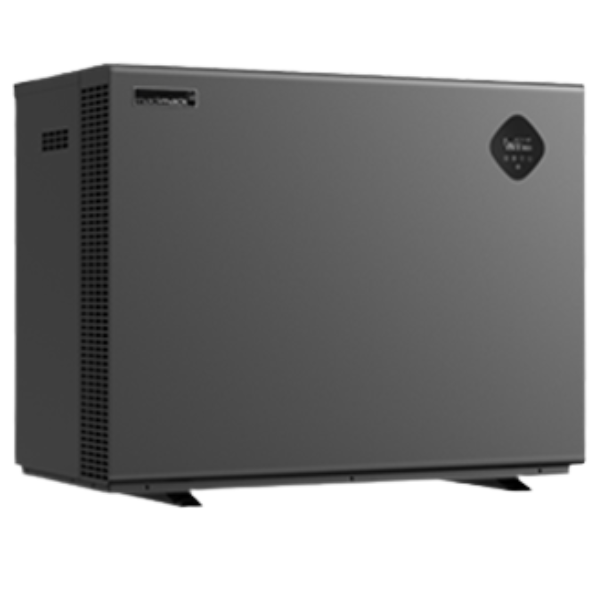

Madimack Elite V3 110 – 11kW Pool Heat Pump

Madimack Elite V3 110 – 11kW Pool Heat Pump

The unit exclusively delivers market leading installation requirements of 100mm from the back and 300mm from the side, providing space saving options for Australian backyards.

Engineered with durability in mind, the Elite V3 operates at optimal levels even in the most corrosive and erosive environments – achieving a massive 31.8kW in a single phase. The Elite V3 sets the standard for all other heaters.

SP-MM-ESV3-110 Features:

• Revolutionary design that redirects airflow to dramatically reduce spatial requirements
• Extremely energy efficient with a COP of up to 16.4 Full inverter stepless compressor and fan
• Sleek design
• Six models up to 31.8kW in single phase
• Three phase 40kW model
• Patented silent design
• Marine grade anti-corrosion aluminium alloy casing Signature diamond touch screen and intuitive display
• WiFi with smart functions
• Newest most eco-friendly R32 Refrigerant
• Three coil evaporator for a more compact unit size TüV Rheinland certified
• Up to 40 degrees set point temperature
• Industry first centrifugal fan
• Advanced cold air performance
• Highest performing single phase unit
• Air Flow – Premium Side Discharge

Models:

• SP-MM-ESV3-110– 11kW – 8.9 Rated Amps – 15A 3 Pin Plug
• SP-MM-ESV3-140– 13.8kW – 10.9 Rated Amps – 15A 3 Pin Plug
• SP-MM-ESV3-170– 17kW – 14.0 Rated Amps – Single Phase
• SP-MM-ESV3-220– 22kW – 17.4 Rated Amps – Single Phase
• SP-MM-ESV3-270– 26.9kW – 20.0 Rated Amps – Single Phase
• SP-MM-ESV3-320 – 31.8kW – 25.0 Rated Amps – Single Phase
• SP-MM-ESV3-400– 40.5kW – 11(3) Rated Amps – Three Phase

Warranty:

• Market leading 10 year compressor warranty
