Zodiac Clearwater C & B Series Chlorinator Half Lead Repair Kit – Genuine

Zodiac Clearwater C & B  Series Chlorinator Half Lead Repair Kit – Genuine

SKU: W191891
Manufacturer: ZODIAC / CLEARWATER
Manufacturer Part Name: 1/2 CONVERSION KIT

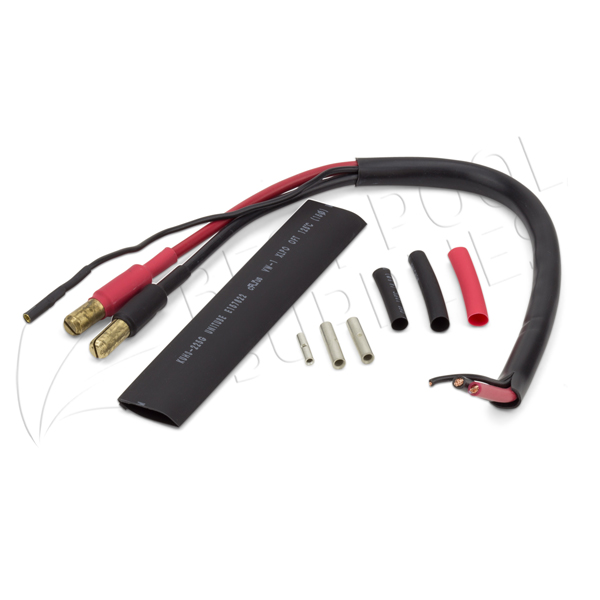

CONTENTS OF KIT:

• 1 X Black outer heatshrink
• 1 X Black innerheatshrink
• 1 X Black sensorheatshrink
• 1 X Red inner Heatshrink

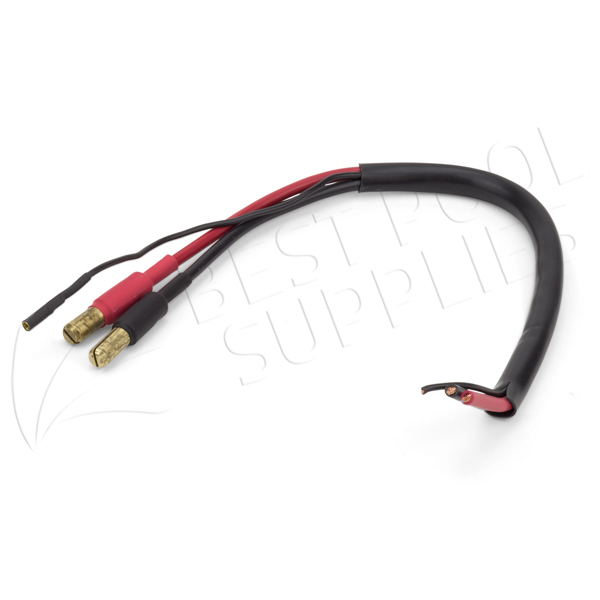

• 1 X One cable assembly
• 2 X Copper Crimp Link
• 1 X Copper CrimpLink

PROCEDURE:

1. Cut the old terminals off existing cables.
2. Slide black outer heatshrink over existing cable.
3. Strip the cable insulation.
4. Slide inner heatshrink on individual cables (red to red and black to  black).
5. Position the crimp links over exposed wires and crimp tightly using  crimping tool. Red to Red and Black to Black.
6. Slide inner heatshrinks over the crimped joints evenly and use heat  gun or hair dryer to shrink.
7. Slide plastic insulation on conversion cable towards the crimpjoins  as far as possible.
8. Slide outerheatshrink over the entire cable and crimp joins.
9. Using a heat gun or hairdryer, shrink black outer heatshrink.
