Following the ever popular SLS series this pump is as quiet and and everlasting, the new SLL models feature a large leaf basket for long intervals between cleaning.
Davey’s water-silenced pool pumps offer super-quiet operation with high efficiency, making them the ideal choice for modern swimming pools.

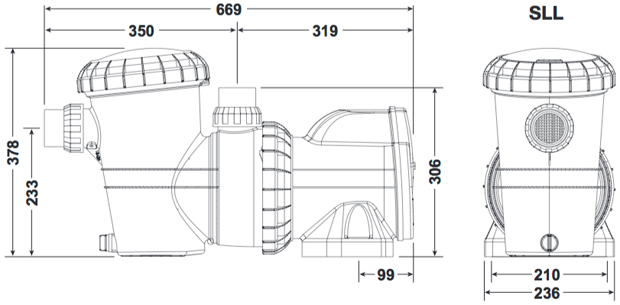

DIMENSIONS (mm) / DATASHEET
|
Model |
Mounting Holes
Diametre (mm)
|
Inlet
PVC (mm)
|
Outlet
PVC (mm)
|
Net
Weight (kg)
|

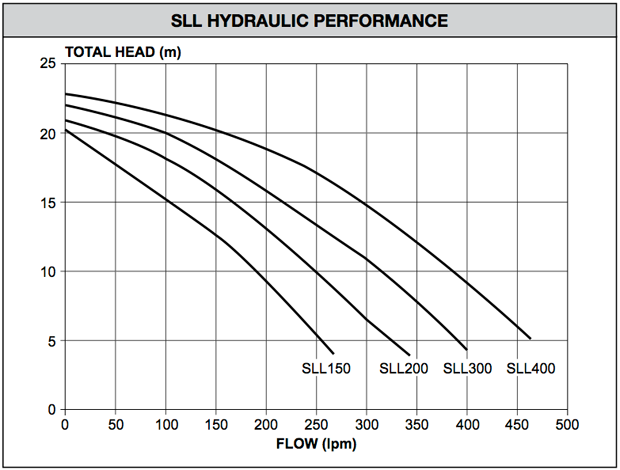

Flow Rate(lpm)
@12m head
|
INPUT |
OUTPUT |
HP |
W |
HP |
W |
SLL150 |
10 x 34 deep |
40/50 |
40/50* |
11.5 |
150 |
1.2 |
870 |
0.8 |
635 |
SLL200 |
40/50 |
40/50* |
12.5 |
200 |
1.5 |
1130 |
1.1 |
830 |
SLL300 |
50 |
50 |
12.5 |
300 |
1.9 |
1400 |
1.3 |
960 |
SLL400 |
50 |
50 |
13.0 |
400 |
2.4 |
1760 |
1.6 |
1200 |






General
Following the ever popular SLS series this pump is as quiet and and everlasting, the new SLL models feature a large leaf basket for long intervals between cleaning.
Davey’s water-silenced pool pumps offer super-quiet operation with high efficiency, making them the ideal choice for modern swimming pools.

Super-Quiet – Designed with a unique water-cooled motor which captures noise and vibrations, allowing super-quiet operation rated at 55 dBa. Your neighbours won’t even know it’s there.
Long Lasting – Silensor is designed for long service life in an outdoor, poolside environment and replaces highly corrodible metal components with high performance, long-life plastics for low maintenance and dependable service – year after year. Dependable – Silensor incorporates unique dry run protection to minimise pump damage if no water is available to the pump. It also includes a unique mechanical seal protection for long service life and reduced maintenance.
Convenient – By water-cooling the motor, Silensor does not require air ventilation, and gives installers more flexibility with pump positioning.
• SLL models feature a large leaf basket for long intervals between cleaning.
APPLICATIONS
Ideal for most swimming pool applications such as:
• Filtration
• Auto pool cleaning
• Backwashing
• Water features
• Spa jet operation
• Solar pool heating
Warranty
Warranty Period – 3 Years
Details
Following the ever popular SLS series this pump is as quiet and and everlasting, the new SLL models feature a large leaf basket for long intervals between cleaning.
Davey’s water-silenced pool pumps offer super-quiet operation with high efficiency, making them the ideal choice for modern swimming pools.
DIMENSIONS (mm) / DATASHEET
|
Model |
Mounting Holes Diametre (mm)
|
Inlet PVC (mm)
|
Outlet PVC (mm)
|
Net Weight (kg)
|
Flow Rate(lpm) @12m head
|
INPUT |
OUTPUT |
HP |
W |
HP |
W |
SLL150 |
10 x 34 deep |
40/50 |
40/50* |
11.5 |
150 |
1.2 |
870 |
0.8 |
635 |
SLL200 |
40/50 |
40/50* |
12.5 |
200 |
1.5 |
1130 |
1.1 |
830 |
SLL300 |
50 |
50 |
12.5 |
300 |
1.9 |
1400 |
1.3 |
960 |
SLL400 |
50 |
50 |
13.0 |
400 |
2.4 |
1760 |
1.6 |
1200 |
